Snap-Fit Joints: Click Into Place 🔗

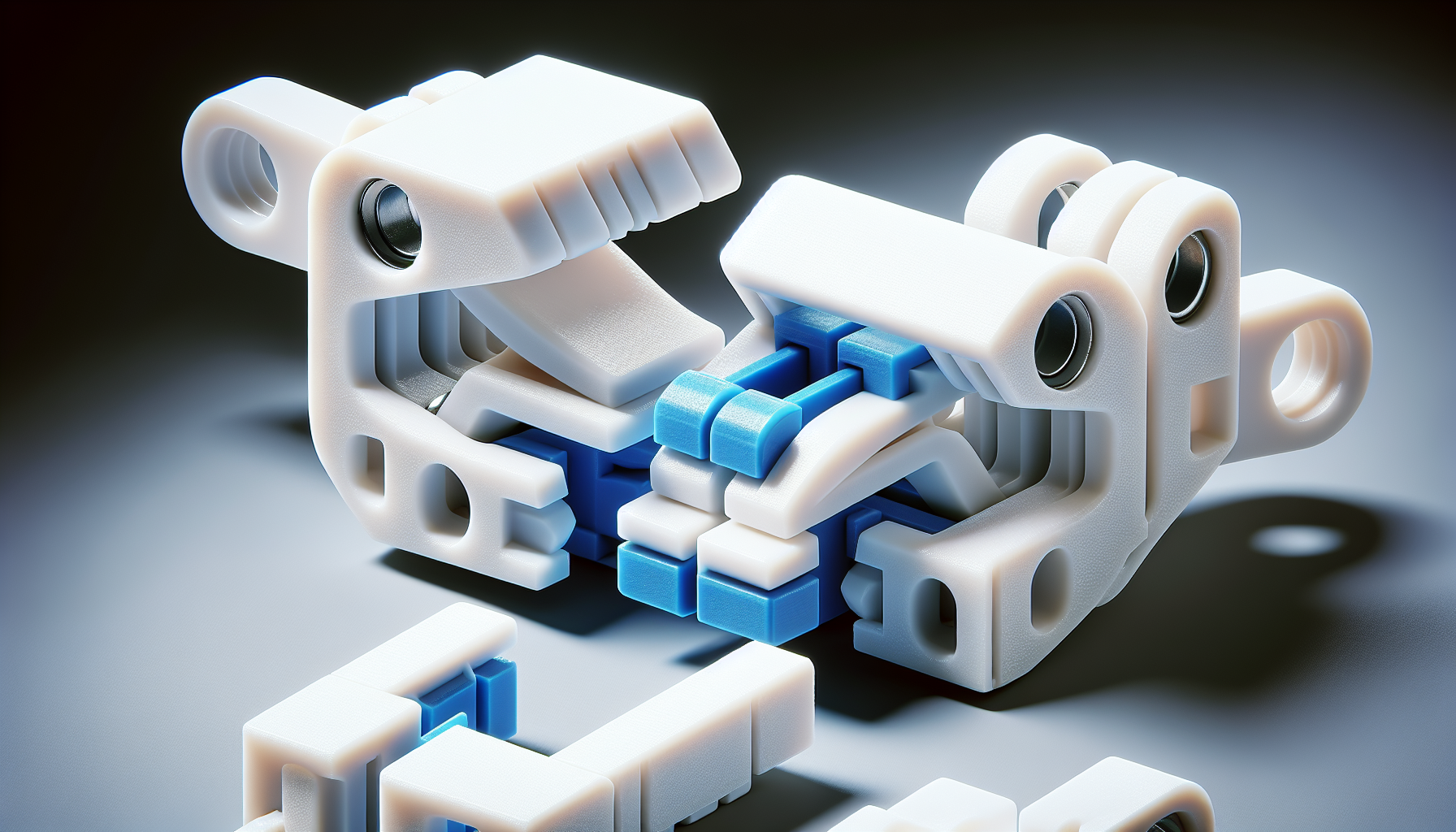

Snap-Fit Joints
Tool-free snap-fit assembly connections
Snap-fits use material flexibility to click together without glue or fasteners.

Types of Snap-Fits

Cantilever Snap (Most Common)

  • Flexible arm with a catch
  • Easy to design and release
  • Good for enclosures

Annular Snap

  • Ring snaps over a sphere
  • Very secure
  • Harder to release

Design Parameters

ParameterFDM Guideline
Beam thickness1-2mm
Beam length5-15mm
Deflection< 5% of length
Catch depth0.5-1mm

Print Orientation

Print snap-fits so flex is along layers (strong), NOT across layers (breaks)!
