Multi-Part Design: Divide & Conquer 🧩

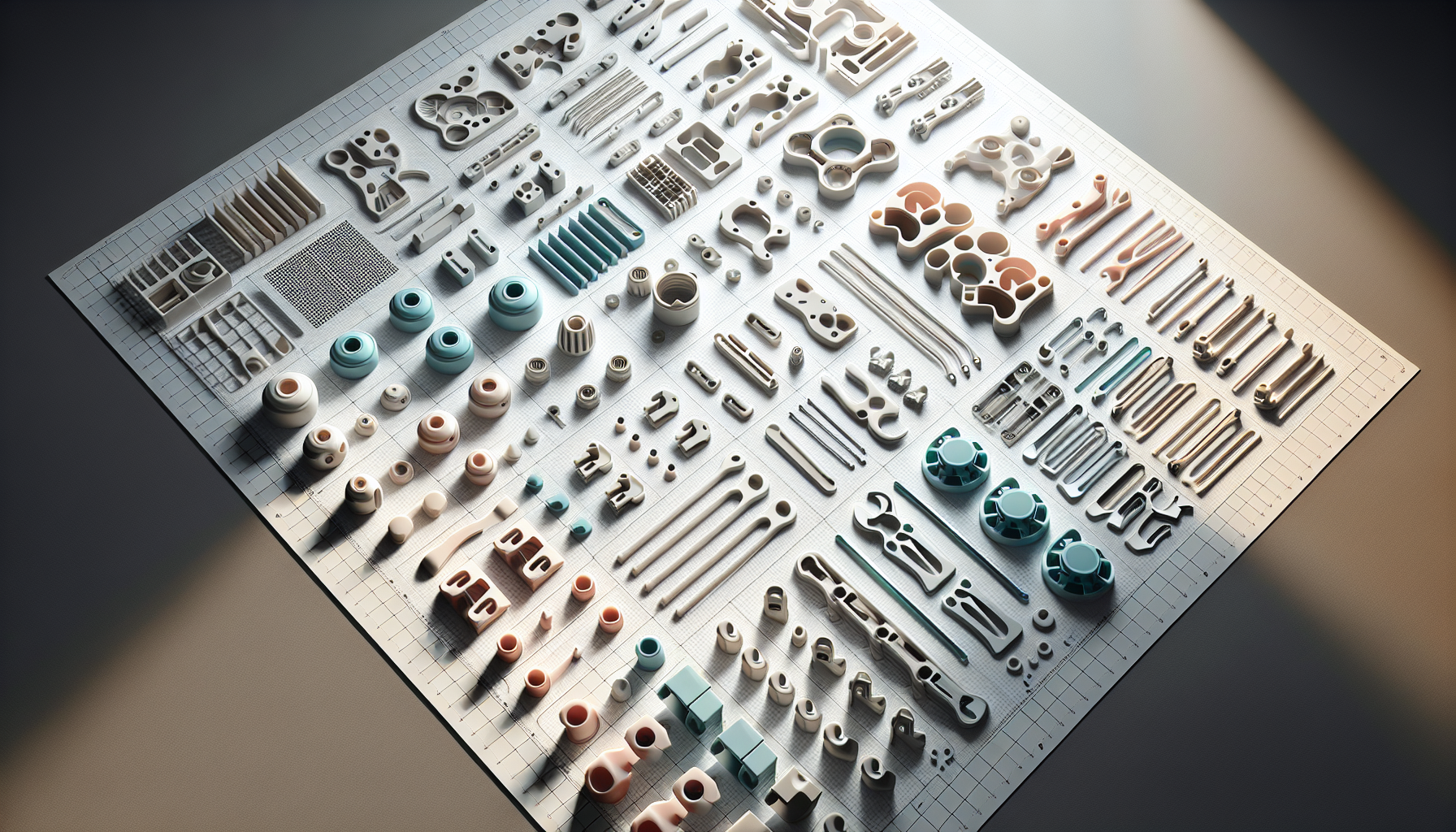

Multi-Part Design
When to split models into printable parts

Sometimes print in multiple parts and assemble!

When to Split

  • Split when:
  • Model doesn't fit print bed
  • Excessive support would be needed
  • Different parts need different orientations
  • Want different colors/materials

    • Joint Types

    JointStrength
    Flat + glueWeak
    Pegs + glueMedium
    DovetailStrong
    Snap-fitMedium

    Design Tips

    1. 1Add alignment features (pegs, grooves)
    2. 2Maximize glue surface area
    3. 3Hide seams in natural break lines
    4. 4Test fit with tolerance
