Project: Phone Stand 📱

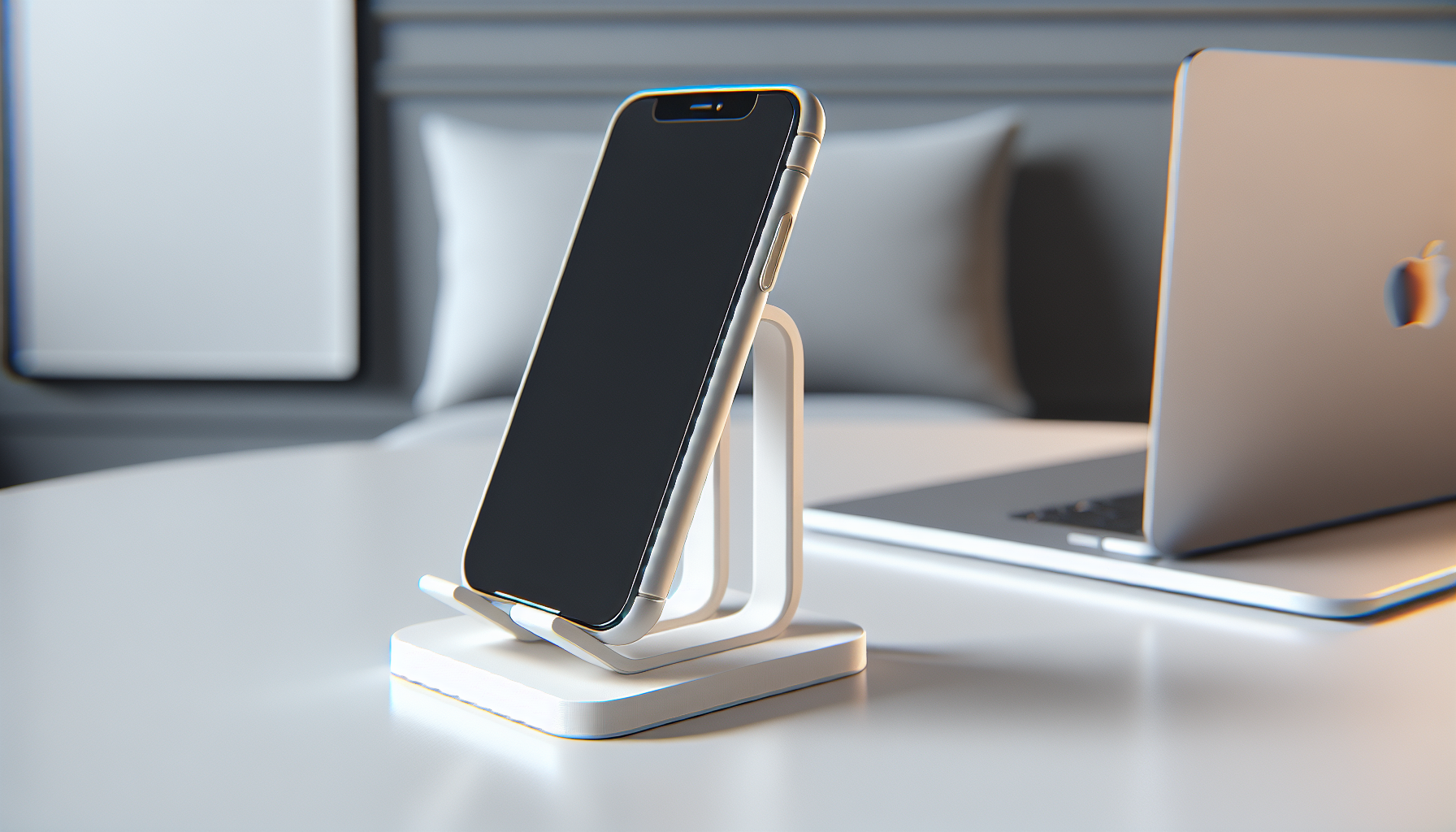

Phone Stand
A functional 3D printed phone stand

Apply everything to create a functional phone stand!

Requirements

  • Stable base - Won't tip over
  • Proper angle - 60-70° viewing
  • Phone lip - Stops sliding
  • No supports - Self-supporting design

Suggested Dimensions

FeatureSize
Base depth60-80mm
Base width70-100mm
Height80-100mm
Front lip5-10mm

Assembly Approach

Build from basic shapes:

  • Cubes for base and support

  • Rotated cube for angled back

  • Small cube for lip
